Friday, January 19, 2018

MAKITA 18V X2 LXT® (36V) ROTARY HAMMER BREAKS NEW GROUND IN CORDLESS

New XRH07PTU with Advanced AVT® is powered by two batteries and features wireless connectivity with dust extractor

The new XRH07PTU uses Bluetooth® technology for wireless power-on/power-off communication between the equipped tool and dust extractor. More AWS-equipped solutions are on the way.

La Mirada, CA – Makita® has broken new ground in concrete hammers with the new 18V X2 LXT® (36V) Cordless 1-9/16” AVT® Rotary Hammer with AWS™. The XRH07 is loaded with advanced engineering that gives contractors a cordless solution for concrete drilling and chipping at up to 1-9/16” capacity, but with significantly lower vibration and AWS™ Bluetooth® technology that enables wireless communication with a compatible dust extractor.

World’s Largest
It’s part of Makita LXT®, the world’s largest cordless tool system powered by 18V lithium-ion batteries.  The new XRH07 is an 18V X2 LXT® (36V) tool, designed to run on TWO 18V LXT® batteries for maximum power, speed and run-time but without leaving the compatibility and convenience of the 18V battery platform.

Another Step toward a Cordless Job Site
“Our vision is a cordless job site, and the XRH07 is a battery-powered rotary hammer that breaks new ground for contractors, without compromising performance” said David Fernandez, Product Manager for commercial products. “18V X2 battery technology gives users the performance they would expect from the equivalent 1-9/16” corded rotary hammer, and with AWS™ there is wireless connectivity with the equipped dust extractor that enables power-on/off communication at the pull and release of the trigger. We’ve also incorporated our Advanced AVT® which provides significantly less vibration, present in our premium line of Rotary Hammers. This is a remarkable engineering achievement and a great solution for contractors.”

Wireless Connectivity
Auto-Start Wireless System (AWS™) uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. AWS™ is intelligent communication that eliminates cords and excessive noise since the AWS™-equipped dust extractor runs only when trigger-activated by an AWS™ tool. When the trigger is released, the dust extractor powers-down. Visit www.makitatools.com/aws to watch the video.

The Makita 18V X2 LXT® (36V) Brushless 2.1 Gallon HEPA Dust Extractor with AWS™ (model XCV08Z, sold separately) is powered by two 18V batteries for maximum performance and combined with XRH07, meets table 1 of the OSHA silica exposure regulation 29 CFR 1926.1153 for handheld rotary hammer drills. In addition to the XRH07 AWS™ Rotary Hammer, Makita is releasing four additional AWS™-equipped tools including a 10” miter saw, 6-1/2” plunge circular saw, and two 4-1/2” – 5” Grinders. Users benefit with an expanding AWS™ system that includes cordless solutions for concrete, metal and woodworking.

Enhanced Anti-Vibration Technology (AVT®)
Makita AVT® is an internal counterbalance system that greatly reduces vibration for increased user comfort and greater efficiency. Makita offers an AVT® solution in every major hammer category, from 1” to 70 lb. The XRH07 is the first Makita cordless AVT rotary hammer, and one of only four Makita concrete hammers with the new Advanced AVT®, which extends AVT® with a synchronized three-component system:

  • Air Actuated Counterbalance directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the drive piston, which actively reduces vibration.
  • Vibration-Absorbing Housing features a spring-loaded main handle and upper housing that move independently of the motor and drive mechanism, engineered to isolate vibration away from the user.
  • Integrated Damper Spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit.

"Many rotary hammers only have spring-loaded handles acting as shock absorbers as their primary means of reducing vibration,” said Fernandez. “This enhanced three-component Advanced AVT® system is a technology that is engineered into the working components of the tool and actively works to reduce vibration, so users get substantially more vibration reduction.”

More Power, Less Vibration
The new XRH07 has the lowest vibration in its class at only 5m/s². The efficient Makita brushless motor delivers 11.4 Joules (8.4 ft. lbs.) of impact energy. It has a maximum concrete drilling capacity of 1-9/16” with an optimum range of 5.8” to 1-1/4”.

Additional features soft start for more control and greater accuracy, variable speed control dial, and a torque-limiting clutch. The XRH07 offers 2-mode operation for “chipping only” or “hammering with rotation”, as well as 24 bit angle settings and a one-touch sliding chuck for quick bit changes.

For more on the XRH07 and Makita AWS™, go to makitatools.com/AWS

Specifications


XRH07PTU (kit)
XRH07ZKU (tool only)
Max. Capacity (concrete drilling)
1-9/16”
1-9/16”
Optimum Range (concrete drilling)
5/8” – 1-1/4”
5/8” – 1-1/4”
Max. Capacity (concrete drilling w/ core bit)
4-1/8”
4-1/8”
Impact Energy (ft.lbs.)
8.4
8.4
Impact Energy (Joules)
11.4 J
11.4 J
Blows per Minute
(variable speed)
1,450 – 2,900 BPM
1,450 – 2,900 BPM
No Load Speed (variable speed)
250 – 500
250 – 500
Vibration Control
Yes
Yes
Vibration (m/s²)
5
5
Battery
2X 18V LXT Lithium-Ion
2X 18V LXT Lithium-Ion
(sold separately)
Bit Type
Accepts SDS MAX
Accepts SDS MAX
Overall Length
18-5/8”
18-5/8”
Net Weight
16.8 lbs.
with batteries
16.8 lbs.
with batteries, sold separately
Includes
Rotary Hammer, Side Handle, Depth Rod, Side Grip Assembly,
Bit Grease, (2) 18V LXT Lithium-Ion 5.0Ah battery (Bl1850B), 18V LXT Dual Port Charger (DC18RD), Tool Case
Rotary Hammer, Side Handle, Depth Rod, Side Grip Assembly,
Bit Grease, Tool Case

About Makita
Makita® is a worldwide manufacturer of industrial power tools, pneumatics and power equipment, and offers a wide range of industrial accessories. Makita® U.S.A., Inc. is located in La Mirada, California, and operates an extensive distribution network throughout the U.S. Call 800/4‐MAKITA or visit makitatools.com. Find Makita on FacebookTwitterInstagram and YouTube @makitatools.

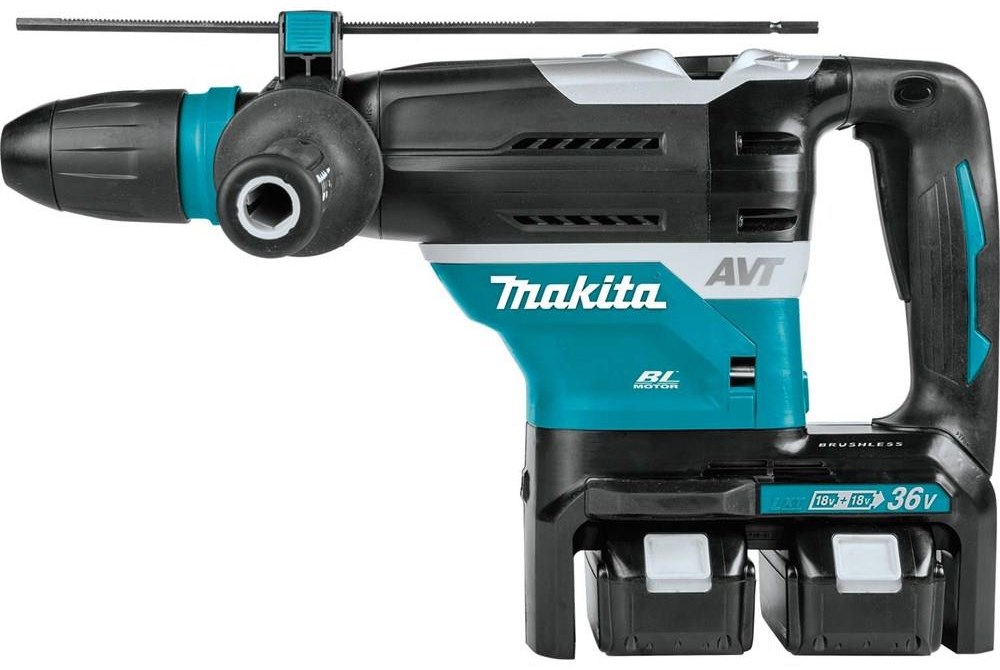

The new XRH07PTU is powered by two 18V batteries for corded performance, but without leaving the 18V battery platform.

Advanced AVT is a 3-component system engineered for significantly less vibration, without compromise in performance.

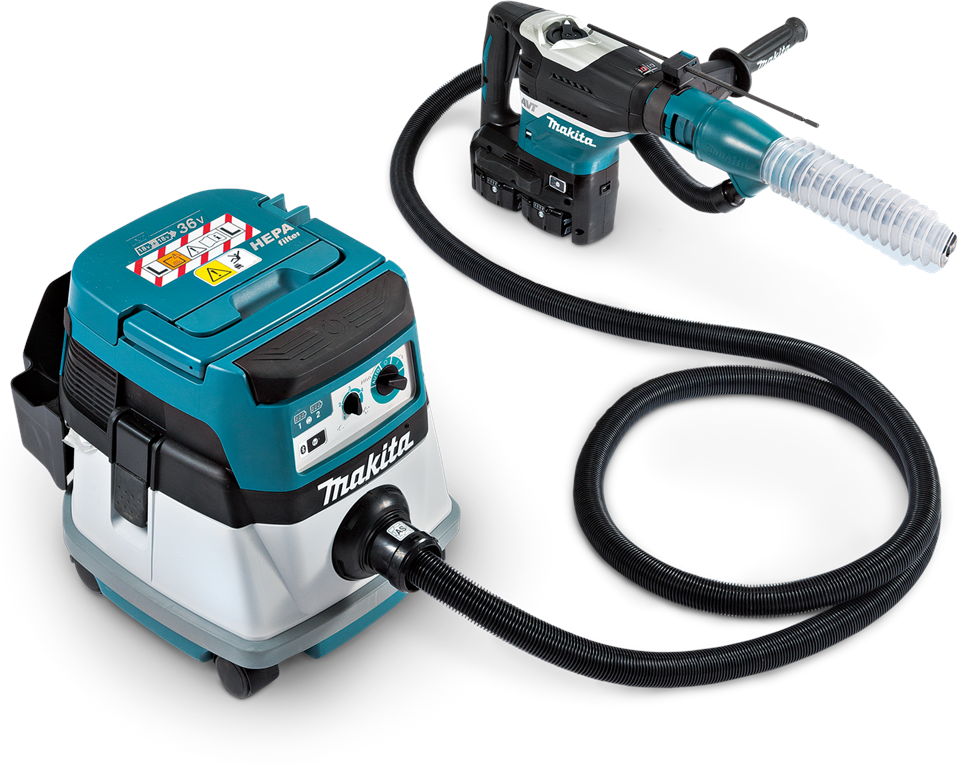

Auto-Start Wireless System (AWS™) uses Bluetooth® technology for wireless power-on and power-off communication between the AWS-equipped tool and dust extractor (sold separately).
