XPP01T1K
18V LXT® Lithium‑Ion Cordless 5/16" Metal Hole Puncher Kit (5.0Ah)
XPP01T1K

18V LXT® Lithium‑Ion Cordless 5/16" Metal Hole Puncher Kit (5.0Ah)

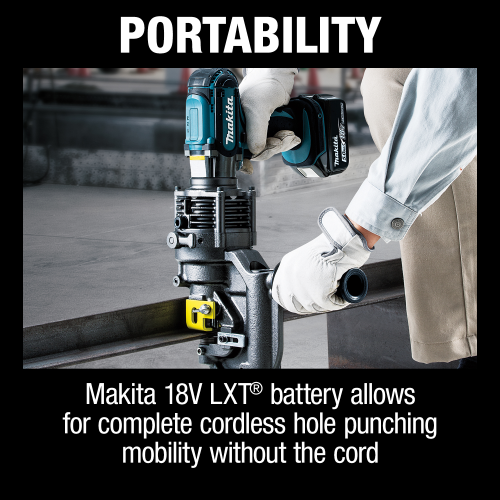

  • PORTABILITY : Makita 18V LXT® battery allows for complete cordless hole punching mobility without the cord

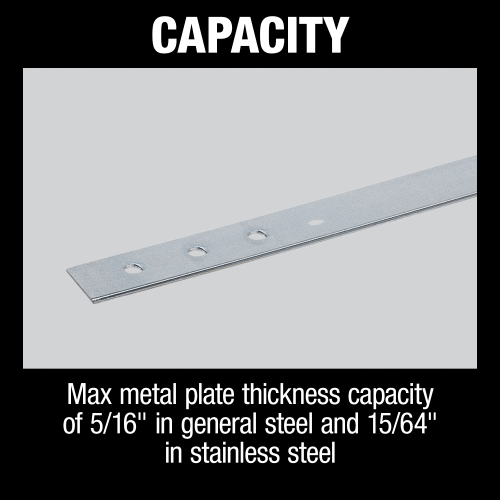

  • CAPACITY : Max metal plate thickness capacity of 5/16" in general steel and 15/64" in stainless steel

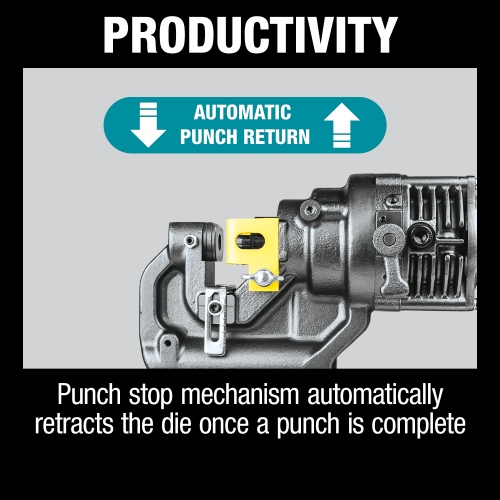

  • PRODUCTIVITY : Punch stop mechanism automatically retracts the die once a punch is complete

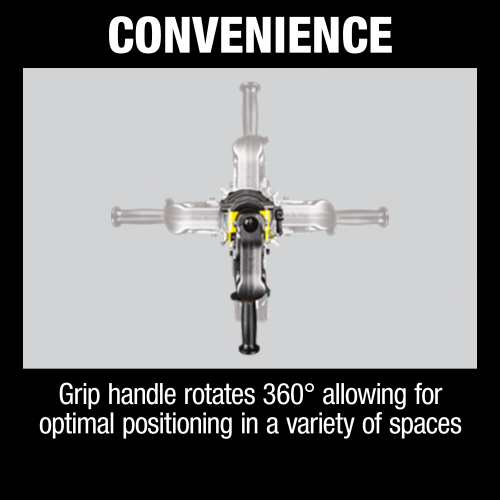

  • CONVENIENCE : Grip handle rotates 360° allowing for optimal positioning in a variety of spaces
  • INCLUDES : (1) 18V LXT® Lithium-Ion 5.0 Ah battery, rapid charger and tool case

Related Options / Software:

About

Punch holes in ¼” metal in under 5 seconds with the 18V LXT® Lithium-Ion Cordless 5/16" Hole Puncher Kit (XPP01T1K). The XPP01T1K allows hole punching with complete cordless mobility. It can punch up to 180 20MM (25/32”) diameter holes in 15/64” thick steel with a 5.0Ah 18V LXT Battery. The punch stop mechanism automatically retracts the die once a punch is complete to quickly continue operation. For select applications, hole punching just became fast and effortless!

The ergonomic grip handle rotates 360°, allowing for optimal positioning in a variety of spaces. It features a rubberized soft grip for increased comfort on the job and a convenient side handle for additional support.

The XPP01T1K is ideal for fabrication, HVAC, plumbing, electrical, mechanical and many more applications.

It’s part of Makita’s expanding 18V LXT® System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita® 18V LXT® Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.

[Read More...]

Features

  • Makita 18V LXT® Lithium-Ion battery allows for complete cordless hole punching mobility without the hassles of a cord
  • Punches up to (180) 25/32" diameter holes in 15/64" thick steel with a 5.0Ah 18V LXT® Battery
  • Punch stop mechanism automatically retracts the die once a punch is complete to quickly continue operation
  • Grip handle rotates 360° allowing for optimal positioning in a variety of spaces
  • Adjustable depth guide allows for punch location adjustment up to 1-37/64" (40 mm) from the edge of the workpiece
  • Max metal plate thickness capacity of 5/16" in general steel and 15/64" in stainless steel
  • Fast and effortless hole punching speed in under 5 seconds
  • Ergonomic pistol grip handle with rubberized soft grip provides increased comfort on the job
  • Built-in L.E.D. light illuminates the work area
  • Return lever allows for the punch to be retracted during mid operation
  • All metal gears and gear housing for maximum job site durability
  • Convenient side handle for additional support
  • Weighs only 23.8 lbs. with battery for reduced operator fatigue
  • 18V LXT® Lithium-Ion 5.0Ah battery BL1850B, features an integrated L.E.D. battery charge level indicator
  • 18V LXT® Lithium-Ion 5.0Ah battery BL1850B reaches a full charge in 45 minutes or less
  • Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
  • Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
  • Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger
  • Compatible with Makita 18V Lithium-Ion batteries with a Star symbol
  • 3-year limited warranty on tool, battery and charger
  • Only use genuine Makita batteries and chargers
  • *Tested in mild steel of 65,000 PSI tensile strength with BL1830B 18V LXT® Lithium-Ion 3.0Ah battery
[Read More...]
LXT (Black on White) Star Protection Computer Controls Logo (Color on White)

TECHNOLOGY

  • LXT® Lithium-Ion

  • Tool users who unplug the cord with Makita 18V LXT® experience new levels of convenience, efficiency and productivity. Makita created the 18V Lithium-Ion cordless tool category in 2005, and today it is the world’s largest 18V cordless tool line-up. Makita’s leading technology gives tool users unmatched performance and breadth of line, with innovation in motor and battery technology that is obliterating industry standards – and leaving old thinking behind. With high amp-hour batteries, efficient brushed and brushless motors, and 36V (18V X2) LXT® technology, Makita 18V LXT® tools not only meet corded demands, they can exceed the performance of corded, all while remaining in a single cordless platform powered by the industry's fastest-charging 18V lithium-ion batteries. [Learn More]

  • Star Protection Computer Controls™

  • Makita cordless tools are engineered for industrial applications, and for added protection during the most demanding jobs Makita created STAR Protection Computer Controls™. STAR is communications technology that monitors conditions during use, allowing the tool and battery to exchange data to protect against overloading, overdischarging and overheating. If STAR detects conditions that threaten to overload, overdischarge or overheat the tool or battery, the tool will automatically stop. At that time the user can either restart the tool, change or charge the battery, and put the tool back to work. When you slide a Makita 18V LXT® battery with the STAR symbol onto a Makita tool that has either the STAR symbol or a yellow terminal, you are benefitting from STAR Protection Computer Controls™.

Specs

  • Battery : 18V LXT® Lithium-Ion
  • Maximum Hole Diameter (Round) : 25/32"
  • Maximum Hole Diameter (Oblong) : 9/16" x 53/64"
  • Max. Hole Depth : 5/16"
  • Maximum Throat Depth (in.) : 1-37/64"
  • Overall Length : 12-27/64"
  • Net Weight (with battery) : 23.8 lbs.
  • Form Factor (LXT) : 18V LXT®
  • Motor Type : Brushed
  • Power Type : Cordless
  • Packaged Depth (in) : 8.7"
  • Packaged Height (in) : 19.1"
  • Packaged Width (in) : 22.8"
  • Shipping Weight : 38.42 lbs.
  • UPC Code : 088381-891059

Includes

  • (1) Spanner Wrench 8mm/10mm (SC00000166)
  • (1) Nut Bar (SC03505300)
  • (1) Side Handle (SC00000155)
  • (1) Tool Case
