DX01
Dust Extractor Attachment with HEPA Filter
Dust Extractor Attachment with HEPA Filter
  • DUST MANAGEMENT : Captures concrete dust during drilling and is activated by the tool for operator convenience
  • DESIGN : Powered by a separate motor to maintain drilling performance; provides a 2-second delay
  • EFFICIENCY : HEPA filtration system captures 99.97% of particulates .3 microns and larger with filter 197556-3
  • CAPACITY : Depth stop adjustment allows drilling up to 3-3/4" deep and diameter bits up to 15/16"
  • INCLUDES : Dust Extraction Vacuum Attachment with HEPA Filter

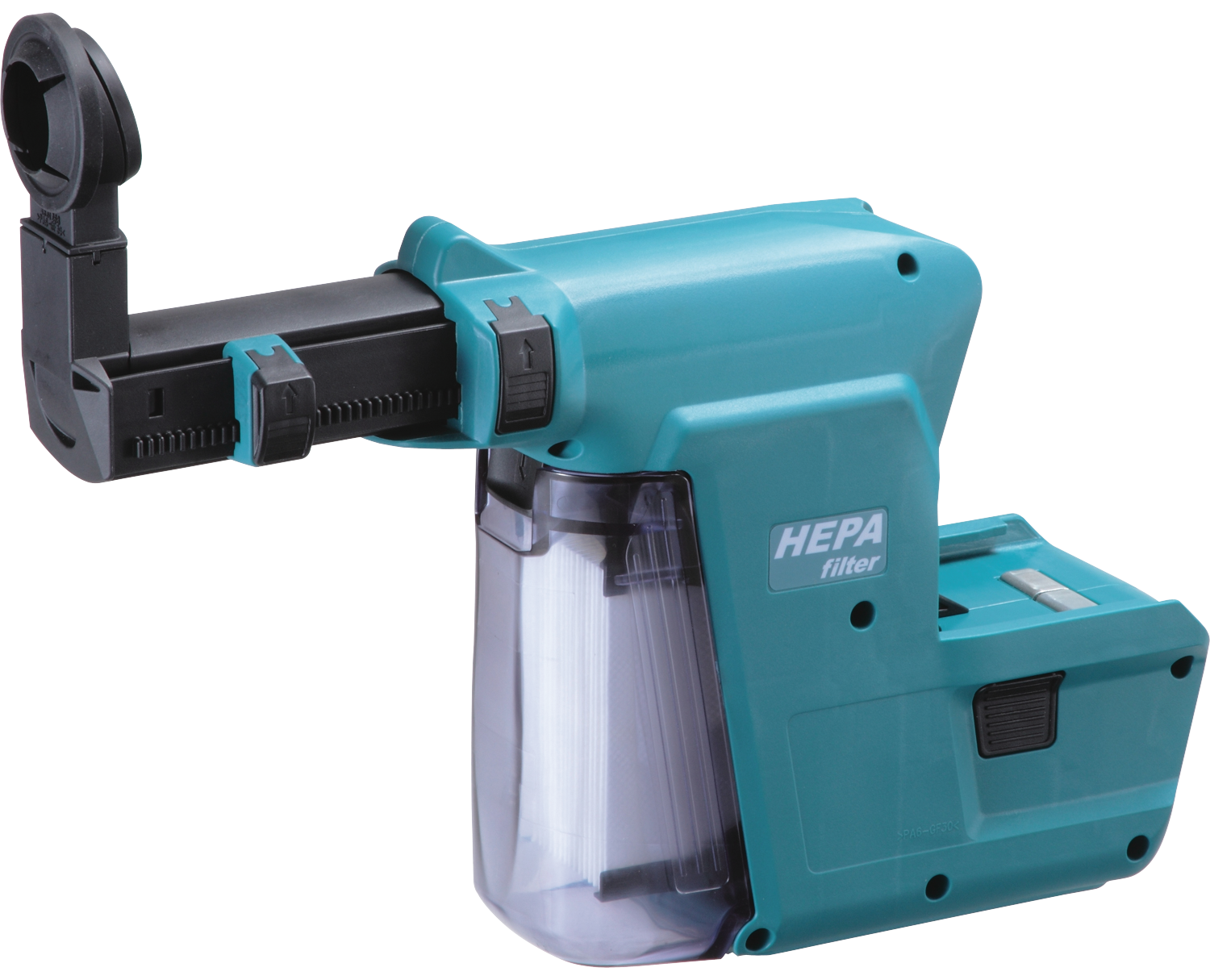

The Dust Extractor Attachment with HEPA Filter (model DX01) is for use with the 18V LXT® Lithium-Ion Cordless Brushless 1" Rotary Hammer (XRH01Z). The DX01 Dust Collection Vacuum Attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection.

This is an OSHA Table 1 compliant on-board dust extractor when used in conjunction with 18V LXT® Lithium‑Ion Brushless Cordless 1" Rotary Hammer (model# XRH01) and Dust Case with Filter Cleaning Mechanism (part #199588-6)

The high-capacity dust container is clear and provides an accurate level indicator of collected material. The container also has the largest material holding capacity in its class with faster and more convenient disposal of material than leading competitor models for less downtime. The dust container has a quick release and can be easily detached from the dust collection attachment when needed.

The DX01 Dust Extractor Attachment is for use with the 18V LXT® Lithium-Ion Cordless Brushless 1" Rotary Hammer. When combined, the 18V LXT® Lithium-Ion Brushless 1” Rotary Hammer with HEPA Dust Extractor Attachment (model XRH01) delivers Makita BL™ Brushless Motor Technology and concrete dust extraction - without the cord. The XRH011 was the industry's first 1" capacity rotary hammer in the 18V category, and has set new standards in the cordless tool category.

The XRH01 is part of Makita’s growing 18V cordless line-up, with 65+ tools powered by one 18V Lithium-Ion battery that reaches a full charge in only 30 minutes.

  • OSHA Table 1 compliant with HEPA Filter Cleaning Mechanism Dust Case (part #199588-6)
  • Captures concrete dust during drilling and is activated by the tool for operator convenience
  • Powered by a separate motor to maintain drilling performance and provide a 2-second delay to help capture remaining dust
  • Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger with filter (part # 197556-3)
  • Depth stop adjustment allows drilling up to 3-3/4" deep and diameter bits up to 15/16"
  • Transparent dust container provides needed visibility in determining when the dust box needs to be emptied
  • Compatible with XRH011TX and XRH01Z
  • Auto shut off time : After 2 seconds
  • HEPA filter : Yes
  • Equipped Filter Efficiency : 99.97% of .3 microns
  • Adjustable Depth Stops : Yes
  • Maximum Hole Diameter (in.) : .937"
  • Max. Hole Depth : 3-3/4"
  • Container Hole Count Capacity : 25 holes of dimension 5/8" x 2"
  • Filter Life (Approx. container fillings) : 200
  • Container Capacity : 10.14 oz.
  • Overall Length : 17-1/2"
  • Net Weight : 3 lbs.
  • Shipping Weight : 3.7 lbs.
  • UPC Code : 088381-400558
  • (1) HEPA Filter (197556-3)
  • (5) Sealing Cap (424474-5)
